CNC Tube Bending for frames and tubular parts
We bend round steel tube up to 2″ (Ø50.8 mm) OD on a 3-axis servo CNC bender with a hydraulic mandrel, with bends up to 190° that repeat the same way across the whole run. Bending and Welding in-house: your tubes move on to Welding, painting and Assembly without changing suppliers.
The same bend, part after part
We program every part on the CNC control and repeat it with the same geometry across the whole run, from prototype to production.
3 servo CNC axes
Bending, feeding and tube rotation driven by servomotors, with simultaneous feed and rotation.
Hydraulic mandrel
The mandrel supports the tube wall through the bend to prevent collapse and wrinkling.
Springback compensation
The control compensates for material springback to hit the angle on your drawing.
From your drawing or coordinates
We program from your drawing or from XYZ coordinates, which the control converts into bending data.
What we bend
Custom bent tubes made to your drawings, for OEMs, maquiladoras and general industry.
Frames & structures
Tubular bases, frames and structures for equipment and machinery.
Guards & railings
Guards, safety barriers, handrails and railings for plants and equipment.
Guide & conduit tubes
Guide tubes and conduit lines bent to your drawing.
Brackets & racks
Tubular brackets, racks and bases for panels and enclosures.
Bent & welded tubes
Bent tubes with welded plates, tabs and brackets, ready for paint.
Prototypes & production
From a single test part to validate your design to production runs.

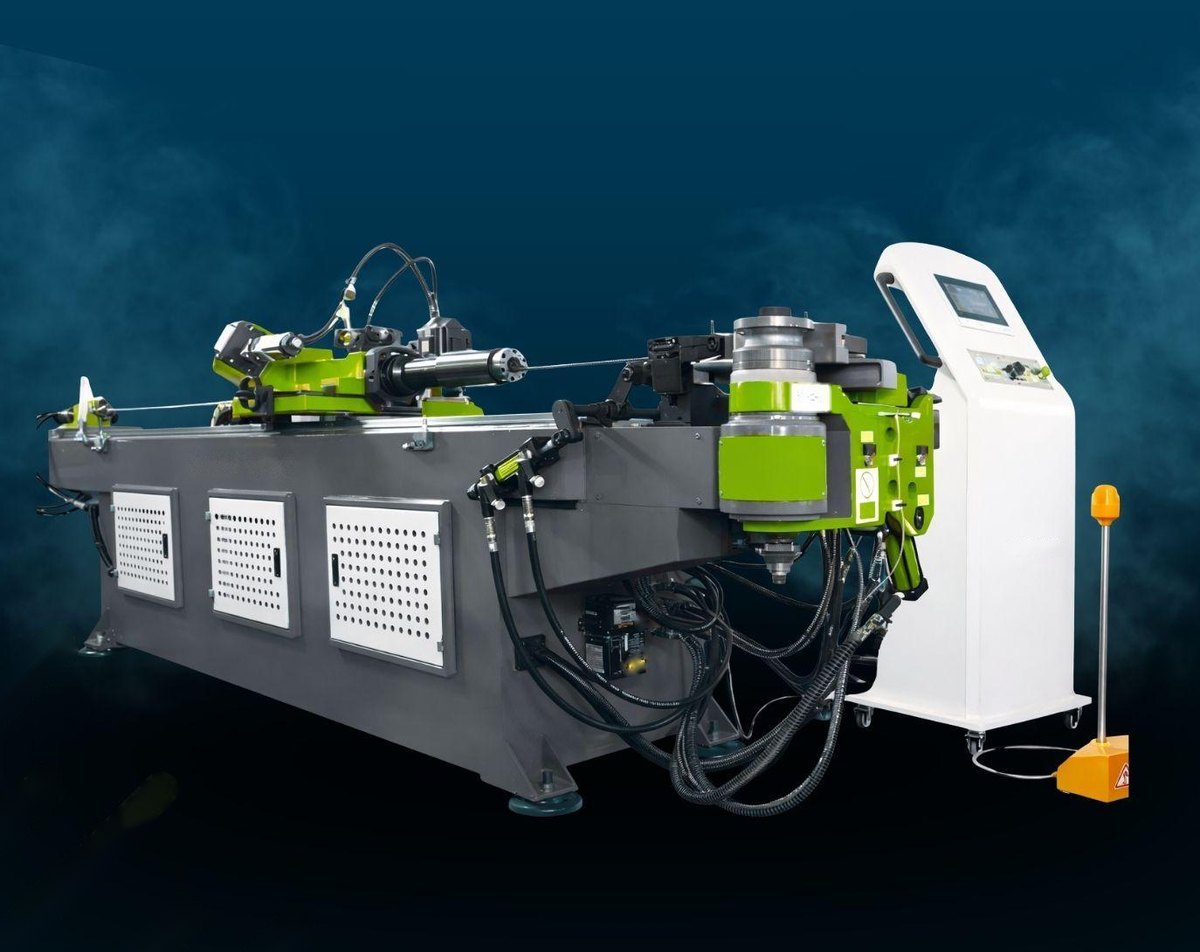

3-axis CNC Tube Bender

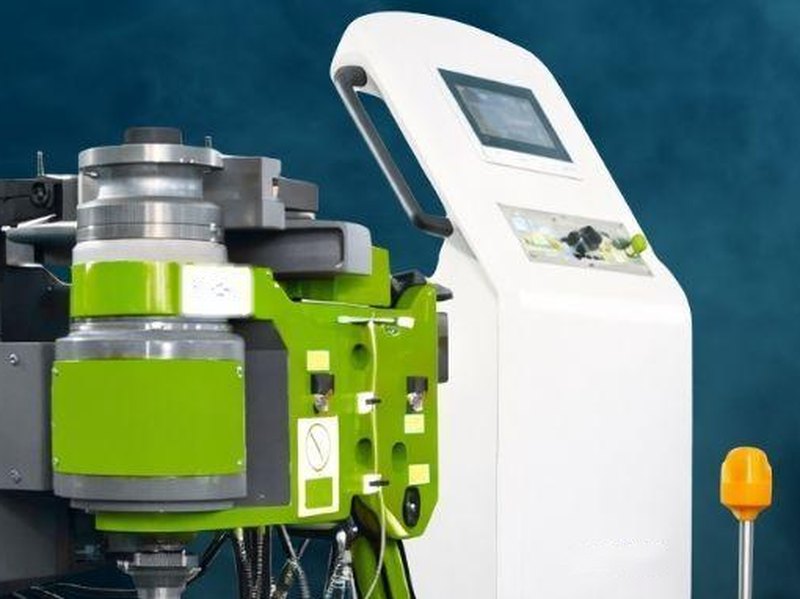

Bend head and CNC control

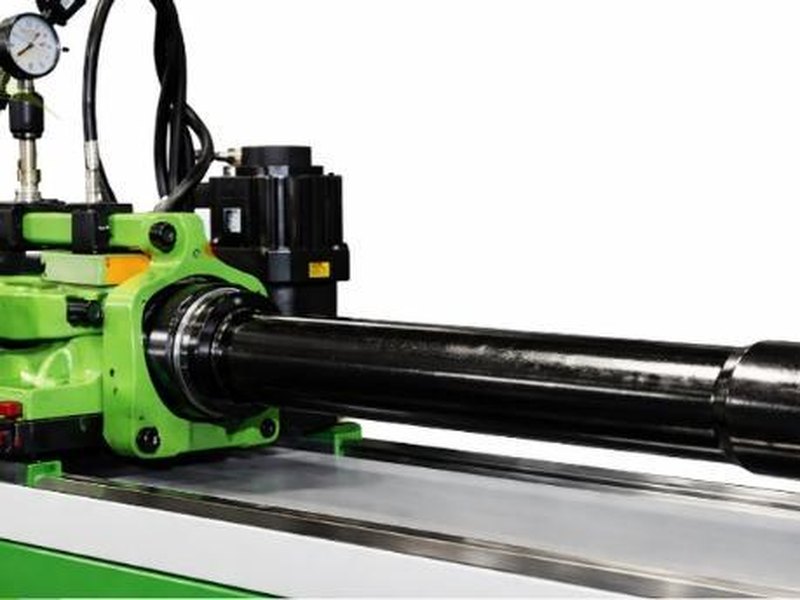

Feed carriage

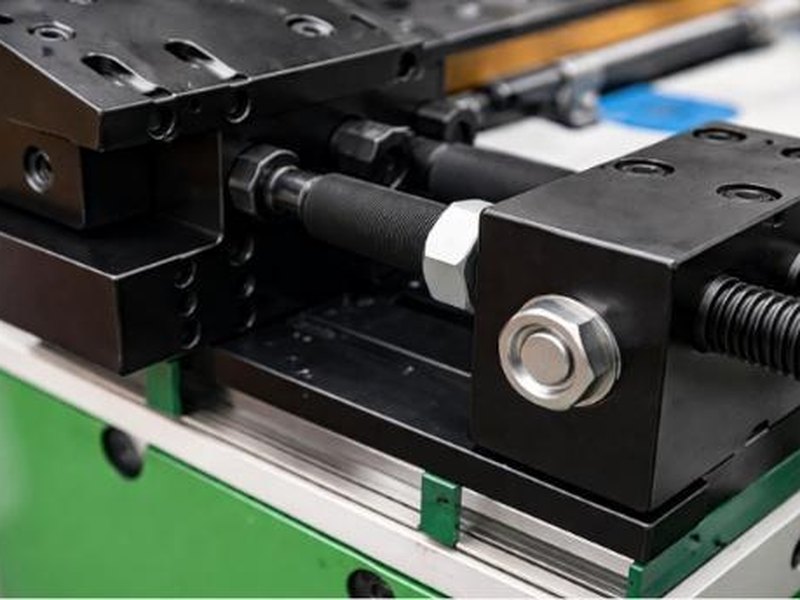

Die clampFrom your drawing to your dock
Send your drawing
PDF, DXF, STEP or a coordinate table, with diameter, wall, material, radii and quantities.
We review and quote
We review diameter, radius and tooling, and get back to you with pricing and lead time.
We program and bend
We program the part on the CNC control, check the first part against your drawing and run production.
We deliver
To your plant in Mexico or directly to your U.S. site.
Tube bending: common questions
What diameter can you bend?
Round steel tube up to Ø50.8 mm (2″) OD with a 2 mm wall. For other diameters, walls or materials, send us the drawing and we’ll confirm.
What radius and angle can you do?
Bend radius up to 300 mm and angles up to 190° per bend. The minimum radius depends on diameter, wall and tooling.
Do you need special tooling?
Each diameter and radius combination uses its own die set. With your quote we’ll confirm whether we already have the tooling or it needs to be made.
Can you make parts with multiple bends?
Yes. The CNC control programs parts with multiple bends in different planes and stores the programs to repeat the part on every order.
Do you also weld and paint the tubes?
Yes. We do the Welding, painting and Assembly in-house, all with one supplier.
Can you deliver to the United States?
Yes. We deliver directly to your plant in the United States, with regular deliveries throughout the Rio Grande Valley and South Texas.
Send us your drawings
Our engineering team reviews your drawings and gets back to you with pricing and lead time.
Quote
Send drawings or part numbers for a no-obligation quote.
Visit
Schedule a visit to see our plant and equipment firsthand.
Pilot project
Start with a small project to evaluate our quality and service.
